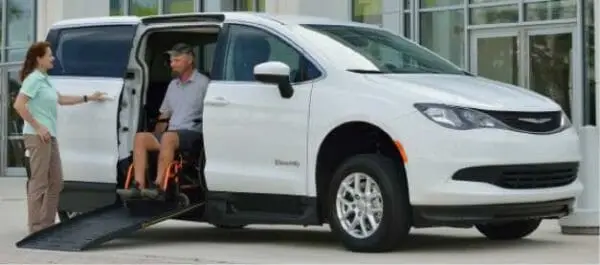

The BraunAbility® Chrysler Voyager LXi comes in three conversion options: Power Fold-Out, Power Fold-Out XT, and Power In-Floor. The first two models utilize a fold-out wheelchair ramp system where the ramp stows and deploys from inside the 2nd row, passenger side sliding door. However, the third option is completely different, using an in-floor ramp system.
With an in-floor wheelchair van conversion, the wheelchair ramp is kept underneath the vehicle’s floor. This method does two things.
First, it provides an unobstructed entry and exit since no ramp blocks the door entry when stowed. A considerable benefit is utilizing the vehicle for the transport of ambulatory passengers.
Second, there is more interior space for passengers and cargo without a ramp housed inside the vehicle’s interior. Click here for additional buying tips.

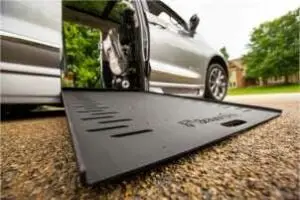

The ramp on the BraunAbility® Power In-Floor, Chrysler Voyager handicap wheelchair-accessible van is 52 inches long and 32.25 inches wide. It is made of lightweight aluminum and features an astonishing 1000-pound load capacity. The ramp’s surface is powder-coated with durable, non-skid material and features a slotted finish that ensures superior traction and works to reduce onboarding debris.
As part of the wheelchair van conversion process, the van’s floor is lowered from its factory height. On the BraunAbility® Power In-Floor, Chrysler Voyager mobility van, the floor is lowered a total of 14 inches from the firewall (just behind the engine) to the rear axle. This floor lowering does two things: First, it creates a taller door entry height of 55 inches to allow for safe entry and exit of wheelchair users. Second, it provides a wheelchair user with a direct line of sight while driving or riding as a passenger.
Standard on the BraunAbility® In-Floor, Chrysler Voyager wheelchair-accessible van is removable front seats. These removable seats allow wheelchair users to drive from their wheelchair or ride as a passenger up front. The seats also feature removable cup holders for added convenience.
Usable Door Opening Width | A | 33.5″ |
Usable Door Opening Height | B | 55″ |
Inside Center Height | C | 58″ |
Height at Driver & Passenger Position | D | 58″ |
Length of Ramp | E | 50.25″ |
Usable Ramp Width | F | 32.25″ |
Angle of Ramp | G | 9.9 Degrees |
Length of Floor Behind Front Seats | H | 71″ |
Overall Floor Length | I | 98.5″ |
Width of Interior at B-Pillars | J | 59.75″ |
Ramp Load Capacity | 1000 lbs. |
